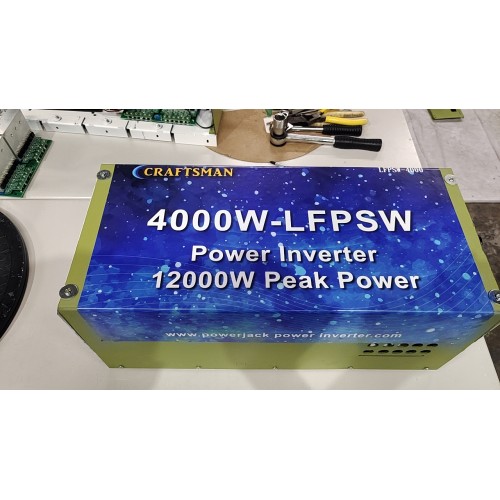

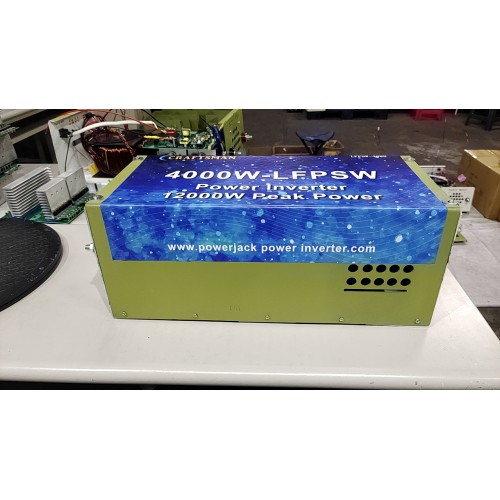

4000W LF split phase pure sine wave power inverter dc 24V to ac 110V and 220V 60Hz

Description
Reviews (0)

4000w

Low Frequency

Split Phase

Pure Sine Wave Power Inverter
DC 24V to AC 110V &220V

OPTION A(factory setting):

110v max output: 4000w

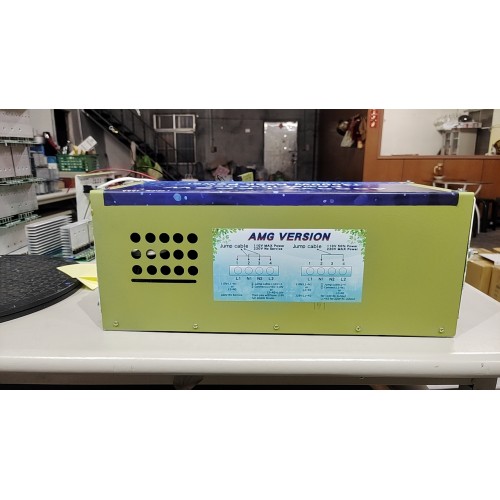

JUMP CABLE OPERATION:
2PCS jumper cable required,
1+4 & 2+3
no 220v service

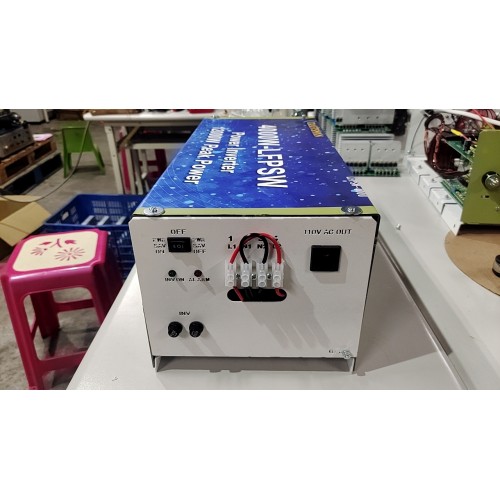

output operation:
L1+N1 OR L2+N2=110V MAX OUTPUT

OPTION B:
2000W 110V OR 4000W 220V

JUMP CABLE OPERATION:
1PC jumper cable required,
2+4
output operation:
110V :
MAX 2000W
L1+N1 OR L2+N2
220V :
MAX 3000W
L1+N2
(Ship from amazon warehouse, 7days can arrive to 48 states USA)

Environmental friendly material-stainless steel, in order to
protect the environment,no spray paint, no environmental
pollution. Although no beautiful outside , but it protects
environment and also saves some cost. we will reduce this
cost to buyer directly and offer a better price for buyer.

Inside big transformer is made by Taiwan factory, material come from Japan, that's bring the inverter efficiency come maintain to 92% at least.

Inside mosfet from Germany, not made in China, that's making sure the inverter for long time use, will be no problem, temperature can stay around 60℃.

Seller's command:

1.Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity !
Simply connect our with a 24v Battery.For example as in a Car, Motorcycle, Camper or Boat and use 110v aor 220V electrical appliances.
Noted: 110v ac output item can not use for your 220v appliance and also 220v ac output item can not use for your 110v appliance!

2.Possible Uses:Equipment,Entertainment Electronics,Household Appliances,Kitchen Devices,Electrical Tools

3.This item is mainly design for more heavy load,such as motor machine,and when it works with your appliance,you should connect with a battery bank and the AC side need to connect with your home source first.

4.This item is with the universal sockets on the AC output side, it can be used in your country.

What's the different between high frequency and low frequency?
High frequency power inverter have limit for running appliances with motors, engines, special light and TV
Low frequency power inverter available for sensitive load, accept generator's energy output, high power factor, and follow our warning label, it would not have any problems.

the output sockets are universal sockets, available for any country.

Feature:
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect our with 24V battery.
For example as in a Car, Motorcycle, Camper or Boat and use 110V or 220V electrical appliances.

Possible Uses:
Equipment:
Computer, Laptop, Monitors, Fax Devices, Scanner
Entertainment Electronics:
TV, DVD-Player, Play Consoles, Hi-Fi-Systems, Music Instruments, Satellite Decoder
Household Appliances:
Fans, Electric Shaver, etc.
Kitchen Devices:
Toaster etc.
Electrical Tools:
Drill, etc.

Specification :

Brand	CRAFTSMAN
Item no.	LFPSW-SP-4000-24-110/220V
Continuous Output Power	4000W
Max Output Power	12000W

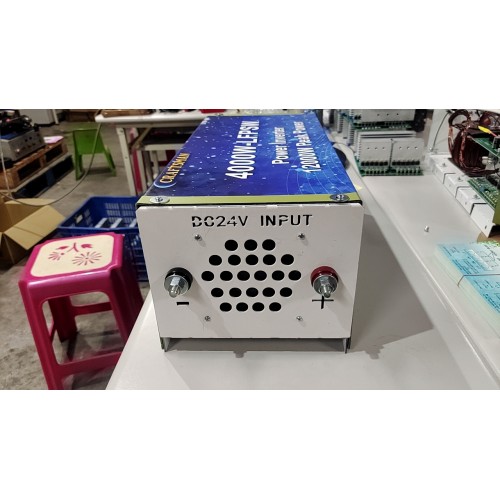

DC Input Voltage	24V
AC Output Voltage	110V & 220V
Regulation	±5%
Frequency	60HZ±3%
Efficiency	90%
Output Wave Form	Pure Sine Wave
Temperature Protection	70C
Input Low Voltage Alarm	21V
Input Low Voltage shutdown	20V
Input High Voltage Alarm	30V
Input High Voltage shutdown	>30V
Dimension	50cm x 32 cm x 20cm
Warranty	1 year
Net Weight	18Kgs
Certificate	CE
Components	Made in Taiwan
Design	Taiwan

Item location: USA AMAZON warehouse.

1. Low Frequency Pure Sine Wave: This indicates that the inverter produces a sine wave output with a low-frequency design. Low-frequency inverters are generally more suitable for powering heavy loads and are often preferred for certain applications.

2. Power Output: The inverter has a continuous power output of 4000W, which represents the amount of power it can consistently deliver. The peak power of 12000W suggests that the inverter can handle temporary surges or peaks in power demand.

3. Safety Protections: The inverter is equipped with safety features such as low and high voltage protection as well as temperature protection. These protections help safeguard the inverter and connected devices from potential damage due to voltage fluctuations or overheating.

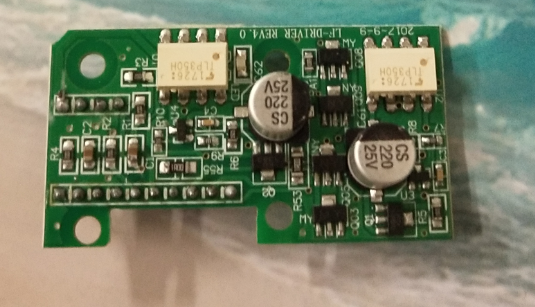

4. DIY Repair Design: The inverter is designed with a "do it yourself" (DIY) repair approach. If something goes wrong with the inverter, you can replace the power MOS board and driver board with screws. This design makes it easier for users to perform repairs without the need for professional assistance. The estimated time for replacement is mentioned as 1 hour.

It's important to note that while a DIY repair design can be convenient, users should follow proper safety precautions and guidelines provided by the manufacturer when attempting any repairs on electrical equipment. Additionally, understanding the specific details of the replacement process and having the necessary technical knowledge are crucial for successful and safe repairs.

If you have any specific questions or if there's anything else you'd like to know about power inverters, feel free to ask!

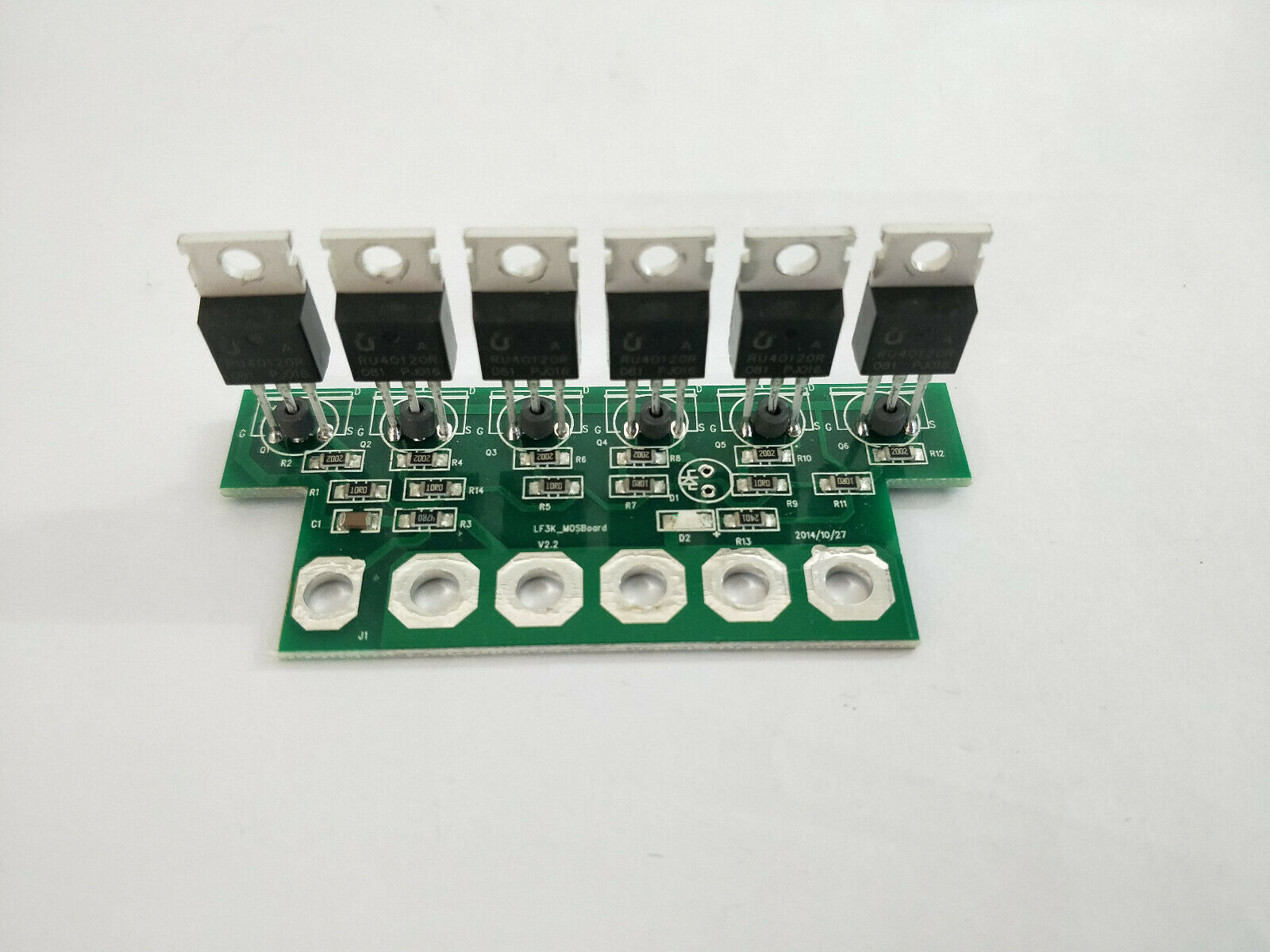

power mos board: can be replaced by screws:
